Step 1: Create the VMware Conductor VM

This step creates the VMware ESXi virtual machine that will host the SSR conductor. A standalone conductor requires a minimum of one VMXNet3 network adapter connected to the management network that will be reachable from all branch routers.

VM Minimum Requirements

Resource	Minimum Value	Notes
vCPUs	4	Expand for deployments with more than 25 managed routers
Scheduling Affinity	0-3	Set under CPU → expand
Memory	8 GB
Disk	62 GB
Network Adapters	1 × VMXNet3	Connected to the management network portgroup
Boot Firmware	EFI	UEFI secure boot disabled

note

For guidance on scaling the conductor for larger deployments, see Conductor Scaling Recommendations.

Log In to VMware ESXi

Open a web browser and navigate to your ESXi host. Log in with administrative credentials.

Create the Virtual Machine

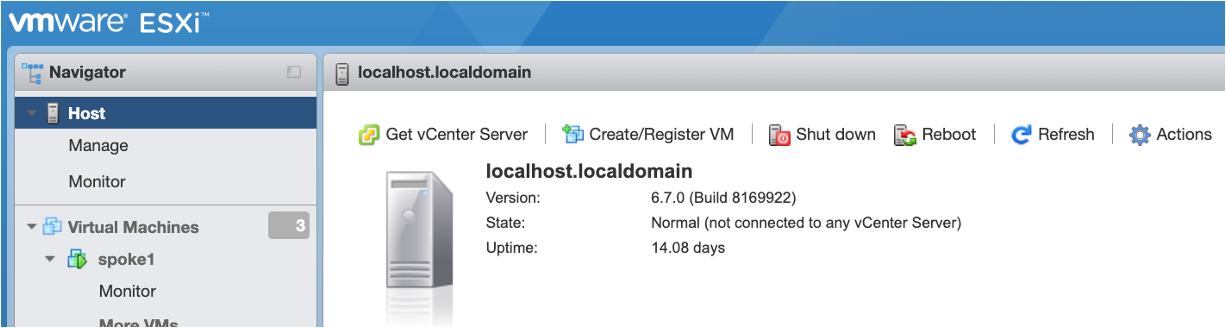

1. From the VMWare Navigator window, click on Create/Register VM.

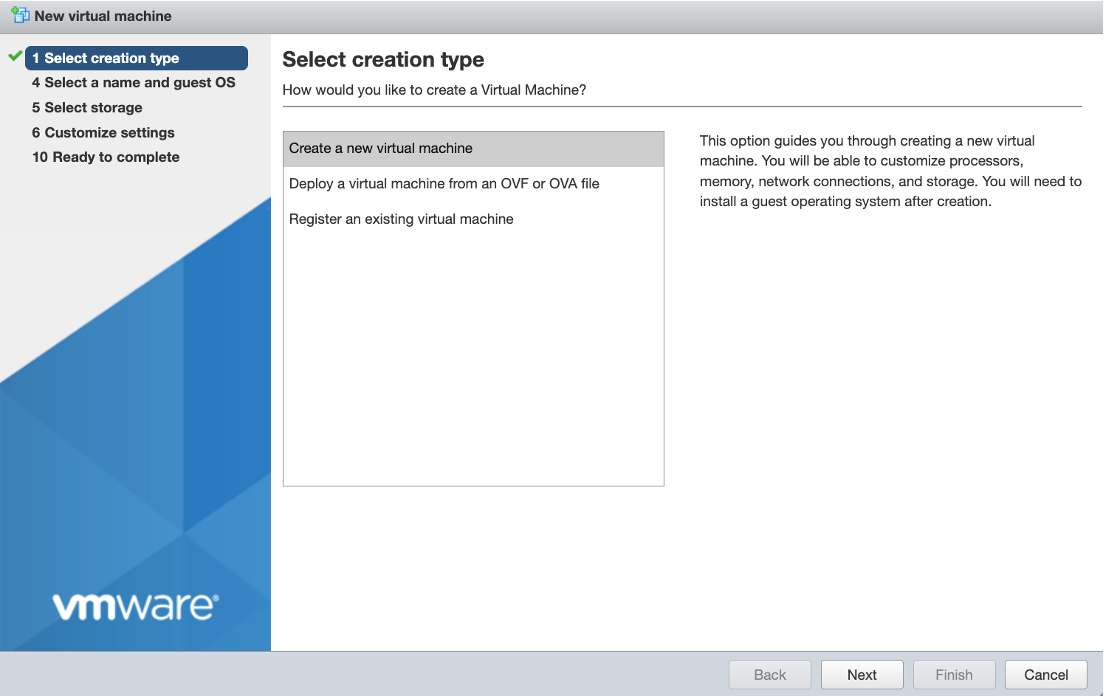

2. In the Select creation type window click Create a new virtual machine and then click Next.

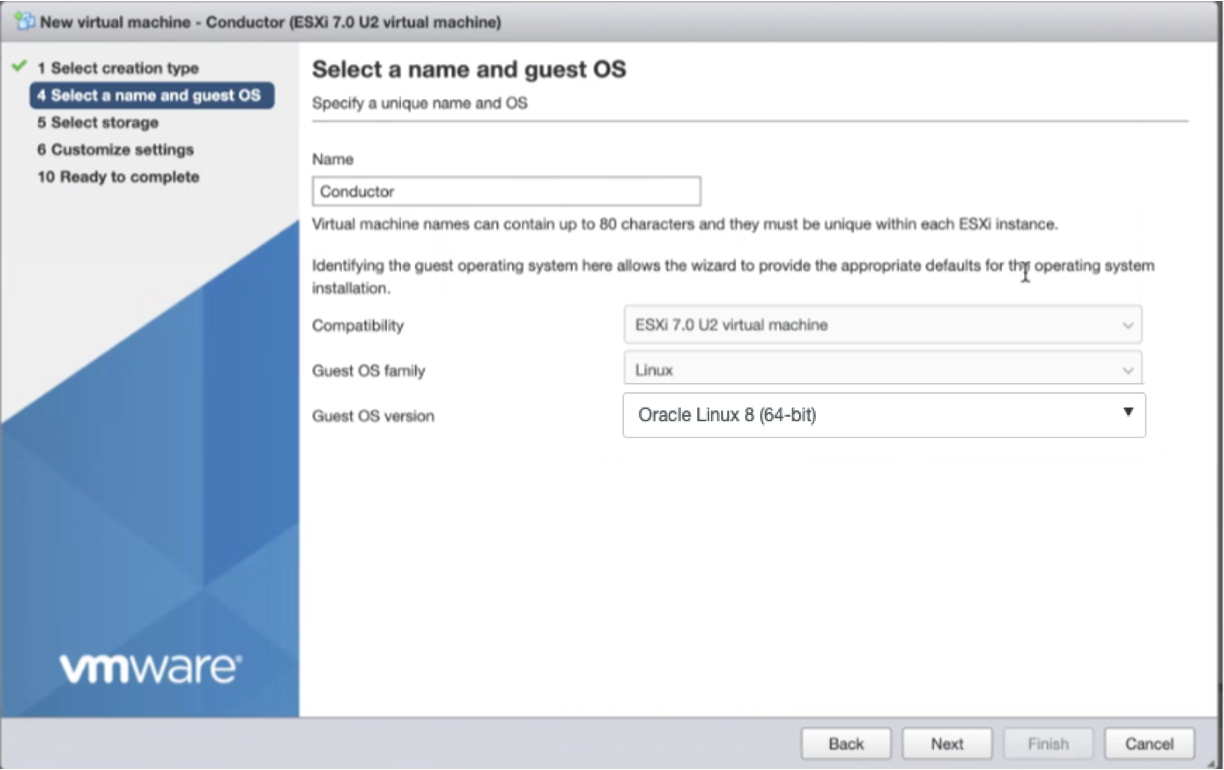

Name and Guest OS

Use the steps below to configure the following:

Field	Value
Name	A descriptive name. In this example, Conductor
Compatibility	ESXi 7.0 U2 virtual machine
Guest OS family	Linux
Guest OS version	Oracle Linux 9 (64-bit) or highest available Oracle Linux (64-bit) version

3. Name the Virtual Machine Conductor.

4. Select Linux from the Guest OS family dropdown selection, and select the Guest OS version as Oracle Linux 9 (64-bit) or the highest available Oracle Linux (64-bit) version . Click Next.



Storage

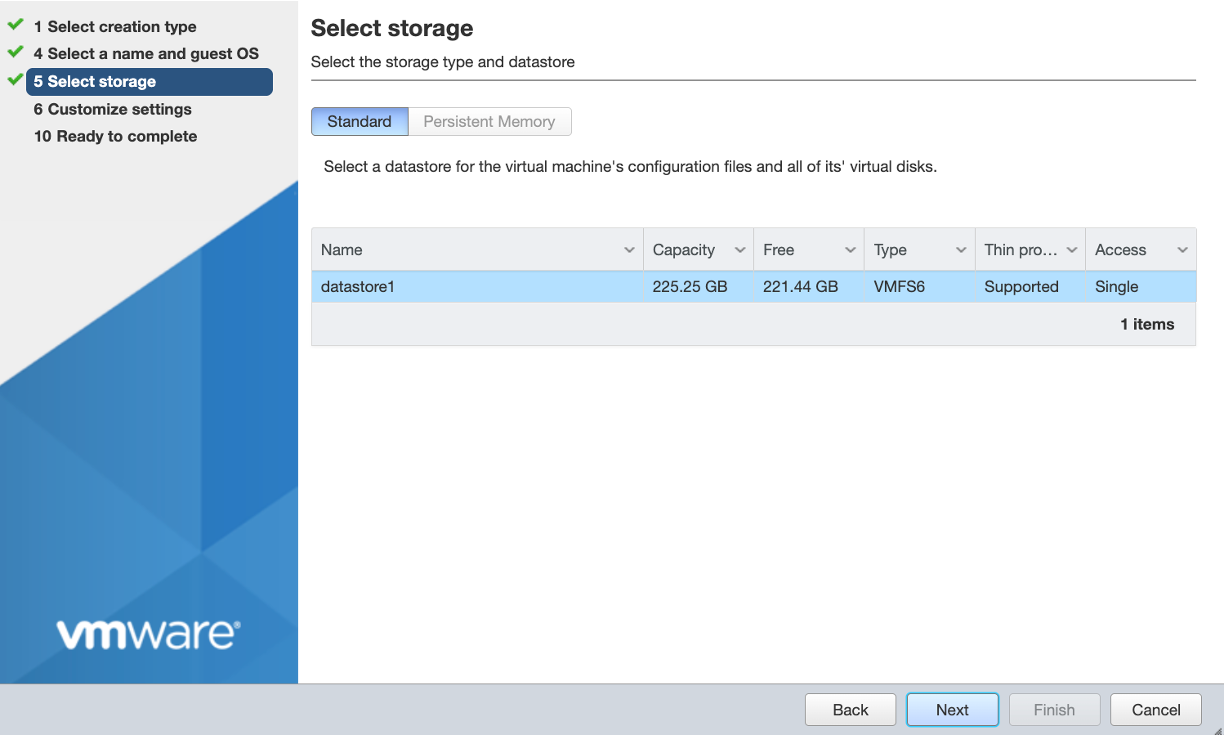

5. From the Storage screen, select datastore1 and click Next.



Virtual Hardware

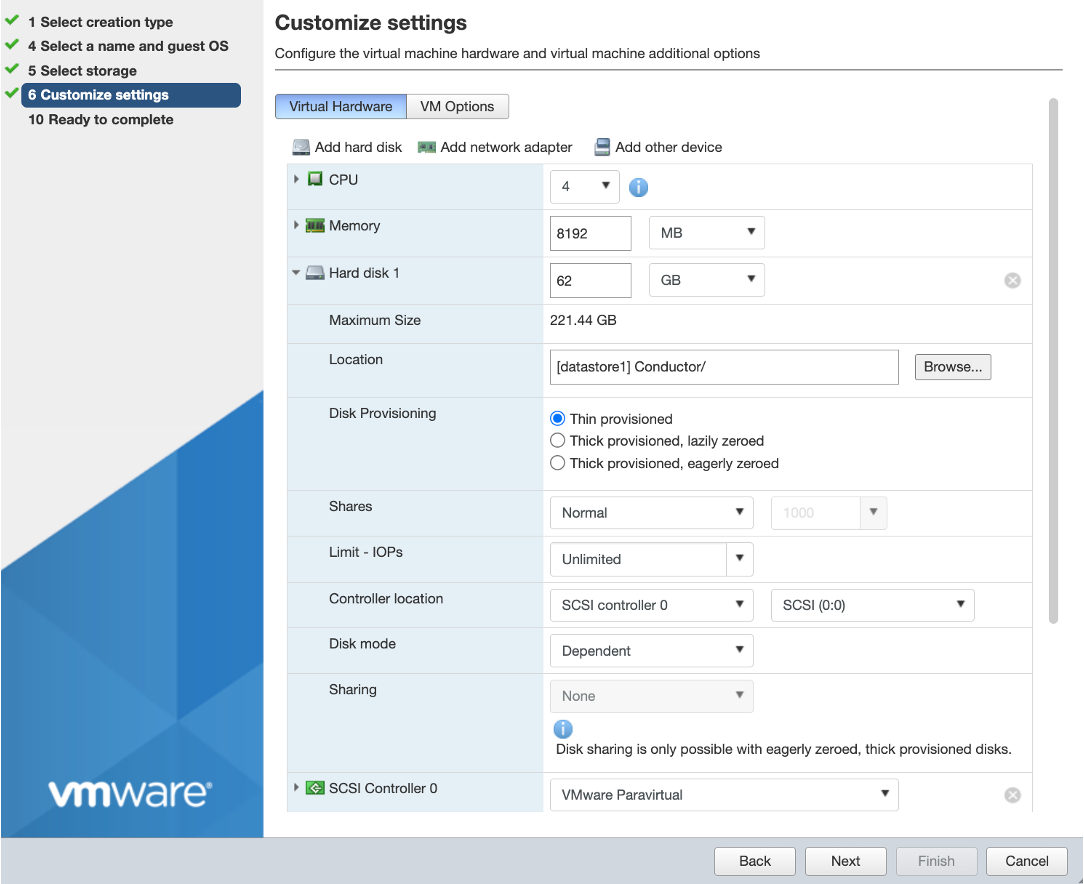

6. On the Customize settings screen, click Virtual Hardware and configure the following settings.

   These values meet the minimum conductor requirements; scale up for larger deployments (see Conductor Scaling Recommendations).

   Setting	Value	Notes
   CPUs	4	Minimum; expand for >25 managed routers
   Scheduling Affinity	0-3	Set under CPU → expand
   Memory	8 GB	Minimum
   Hard Disk 1	62 GB	Minimum



   Click Next when the settings are configured.

Network Adapters

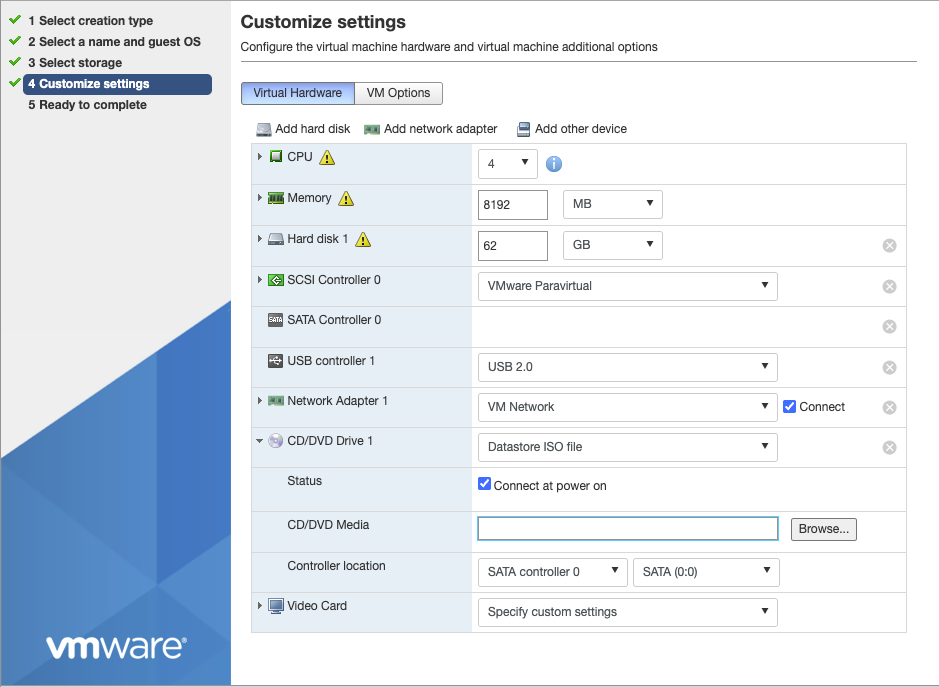

By default, one network adapter is created. For a standalone conductor, one adapter is sufficient. Click the adapter to expand it and set the Adapter Type to VMXNET3. Set the Network to the management network portgroup connected to your conductor management subnet.

CD/DVD Media - Software Selection

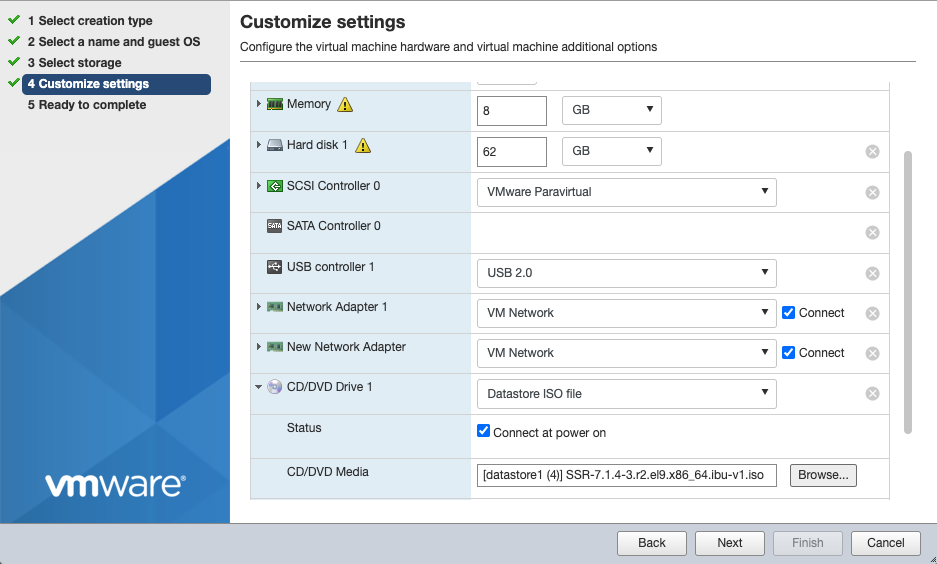

7. As shown in the image above, expand CD/DVD Drive 1.

8. Place a check next to Connect at power on. In the dropdown to the right, select Datastore ISO file and then click Browse. The Datastore Browser opens.

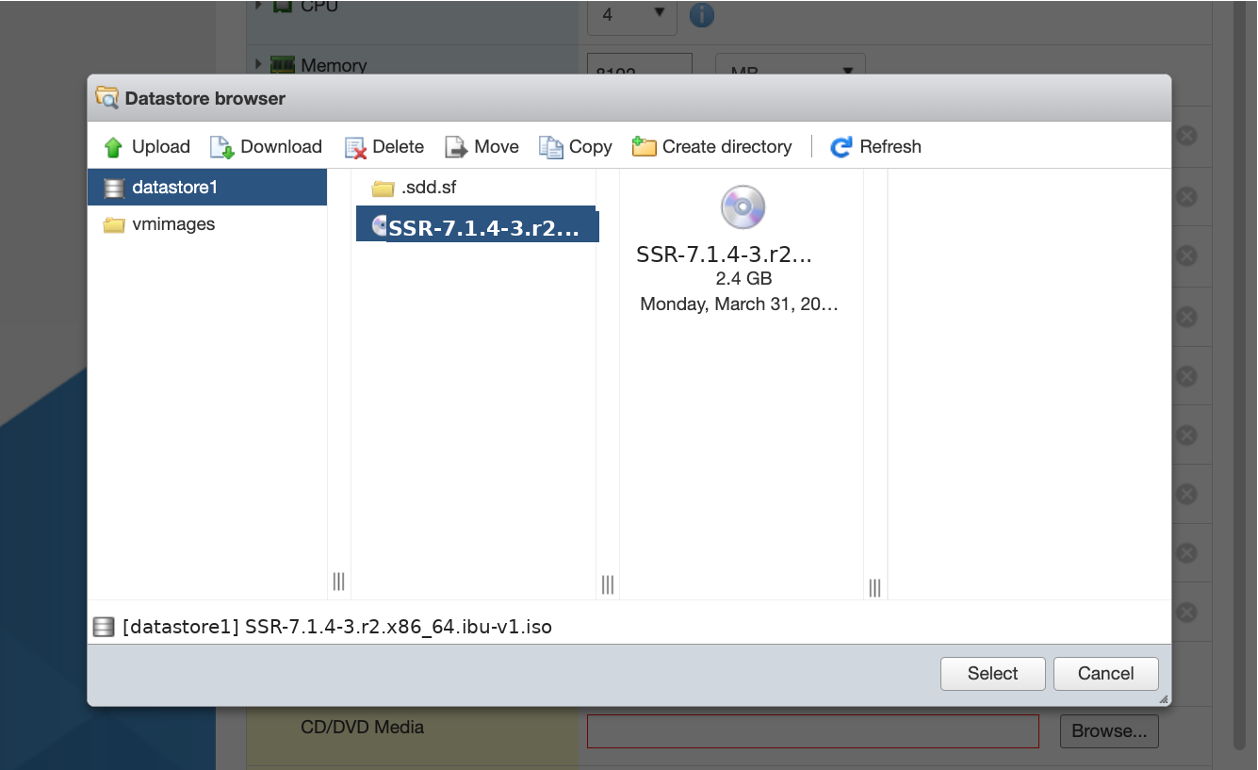

9. Select the SSR-7.1.4-3.r2.el9.x86_64.ibu-v1.iso and click Select.

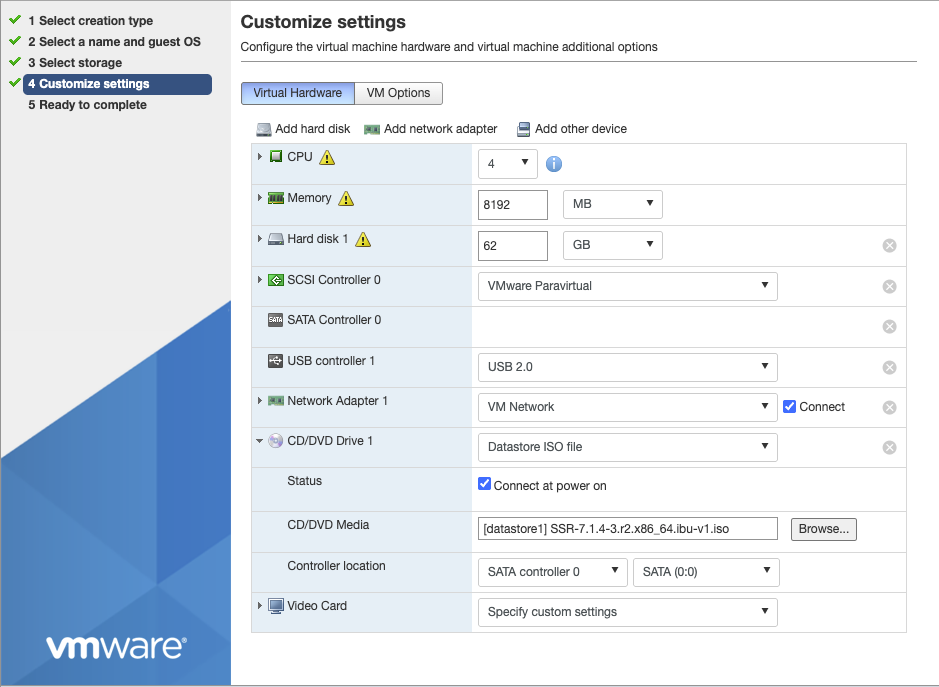

10. Confirm the settings, and then click Next.

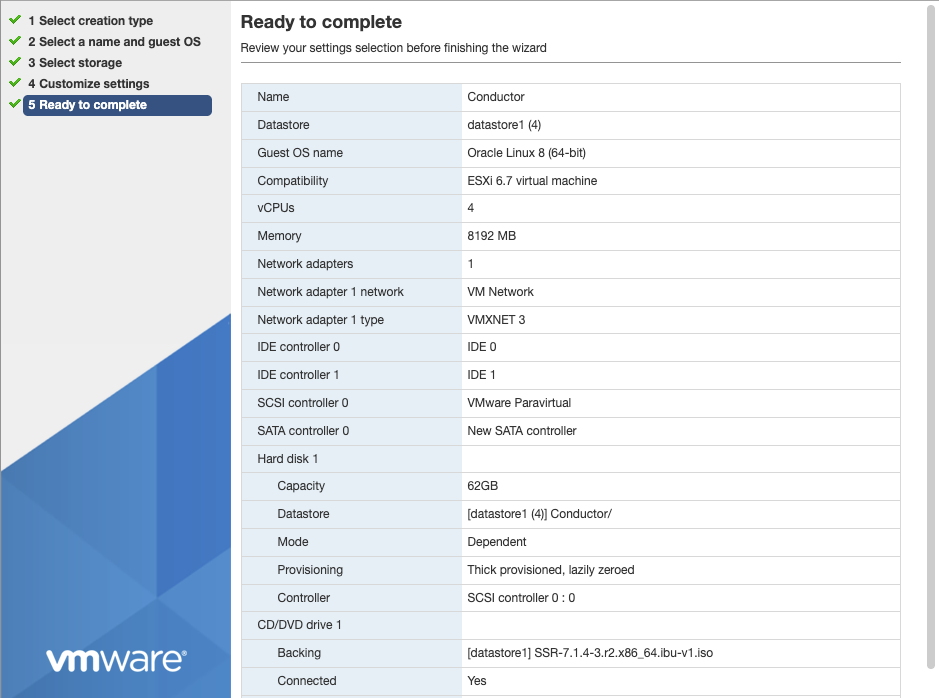

11. Review the summary, scroll to the bottom of the window and click Finish.

Next Step

Proceed to Step 2 — Install SSR 7.1.4 and Initialize the Conductor.
