Non-forwarding HA Interfaces

Non forwarding interfaces are used for several purposes, including HA peer node control traffic, reaching a 128T Conductor from a 128T Router, reaching managed 128T Routers from a 128T Conductor, management traffic and reaching the public internet.

Before we get started, it is important to understand the terminology relating to 128T interfaces

important

Changing a forwarding interface to non forwarding and vice versa is not dynamically reconfigurable and requires a restart of the 128T node

A quick recap:

External interfaces are not used for any control traffic to the node's HA peer and the user has no limit to how many external interfaces they configure. A user may configure either one fabric or one shared interface per node, and that interface will be used for all HA control traffic.

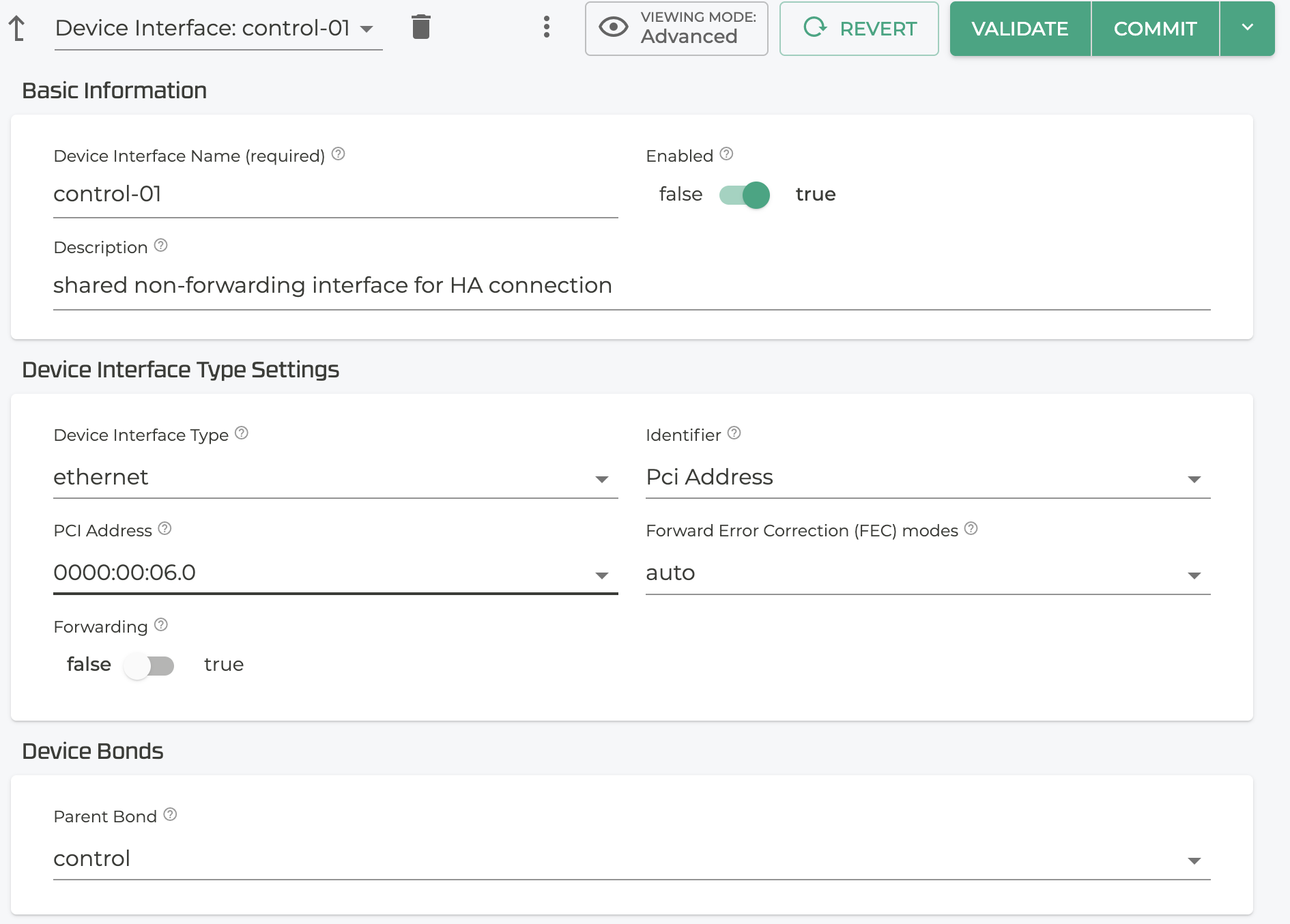

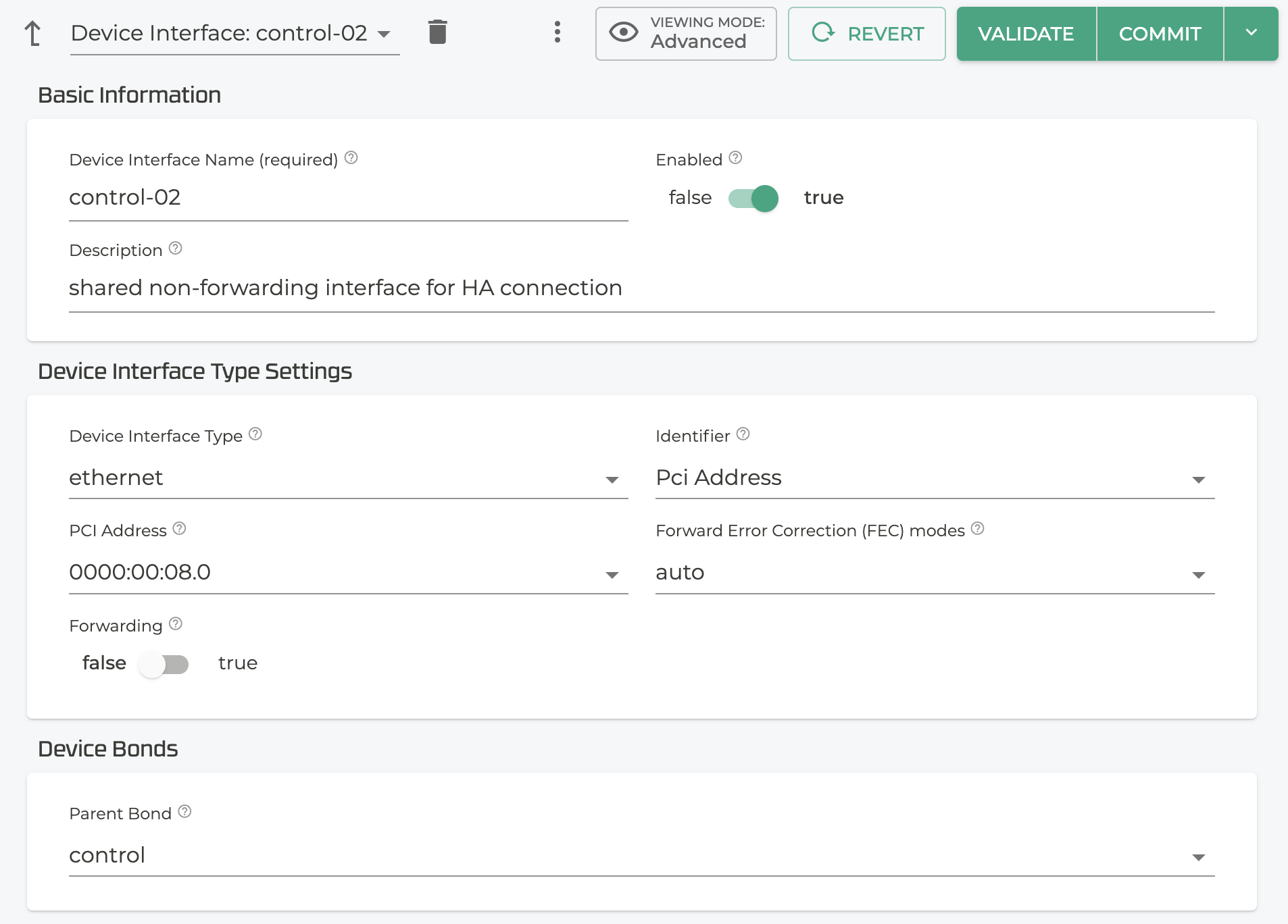

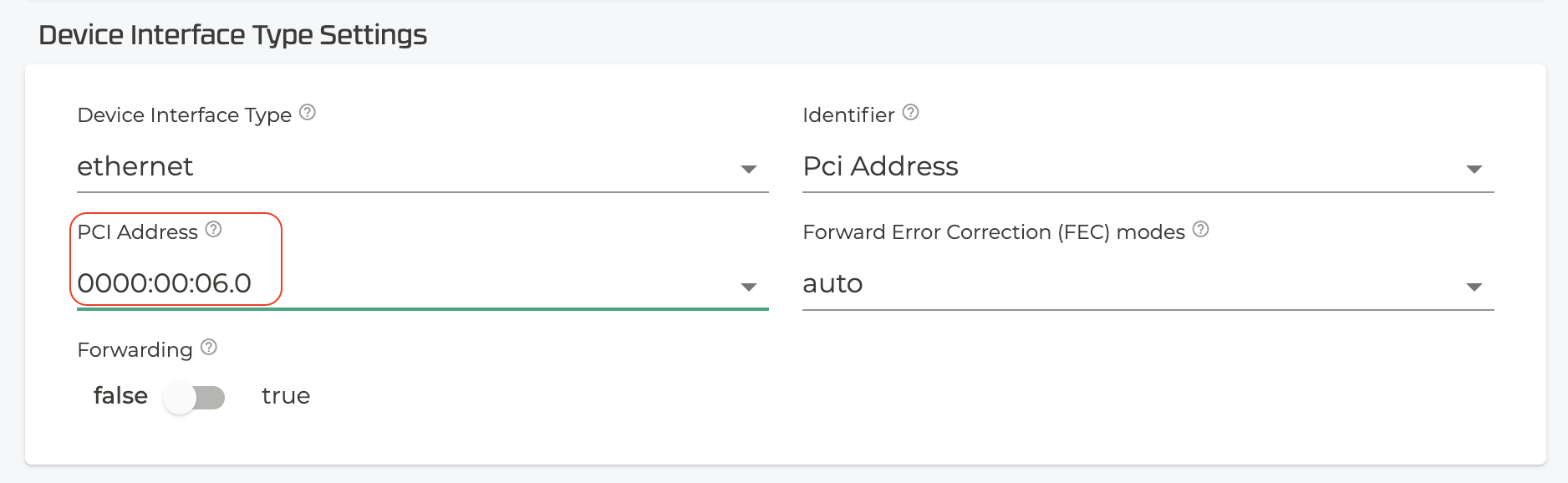

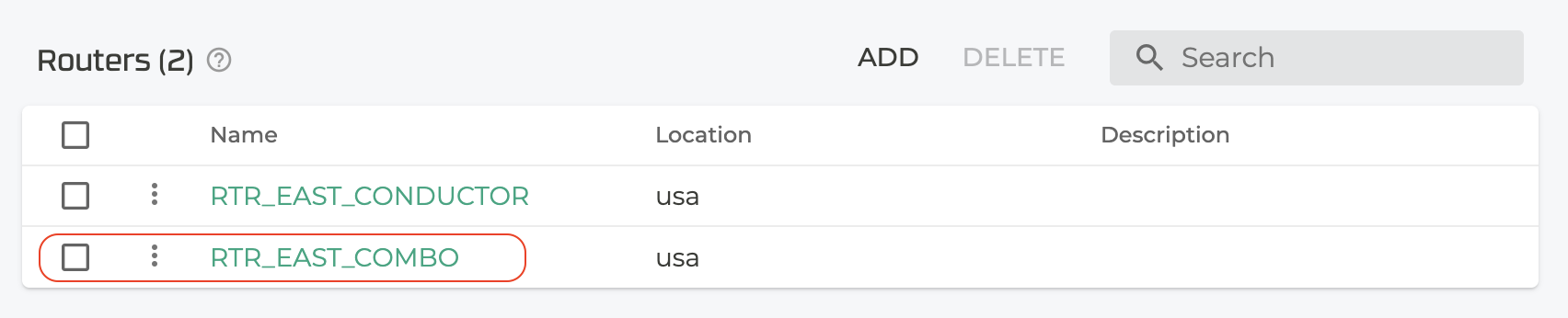

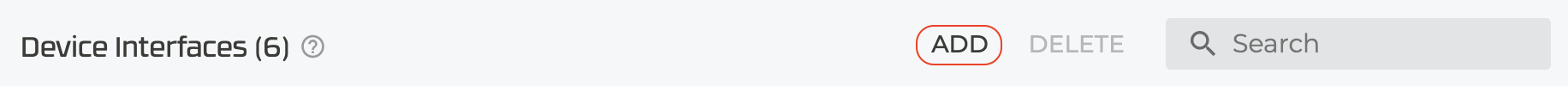

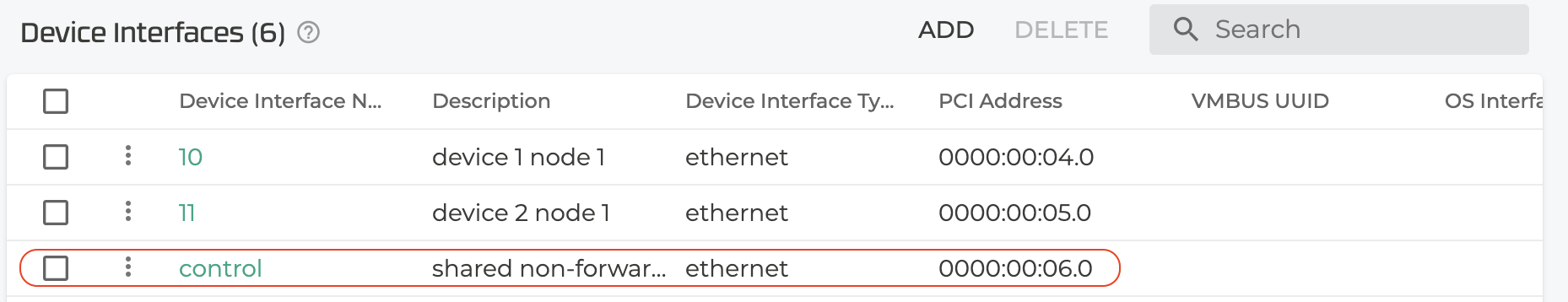

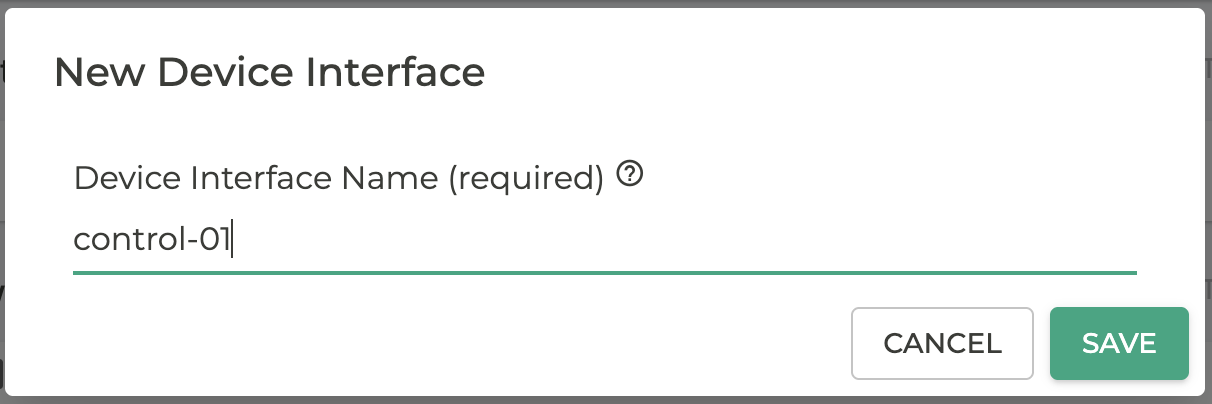

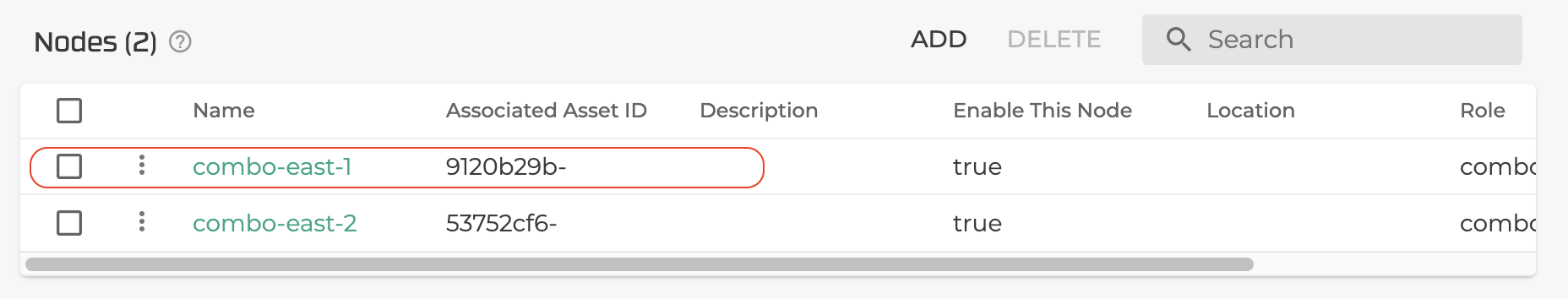

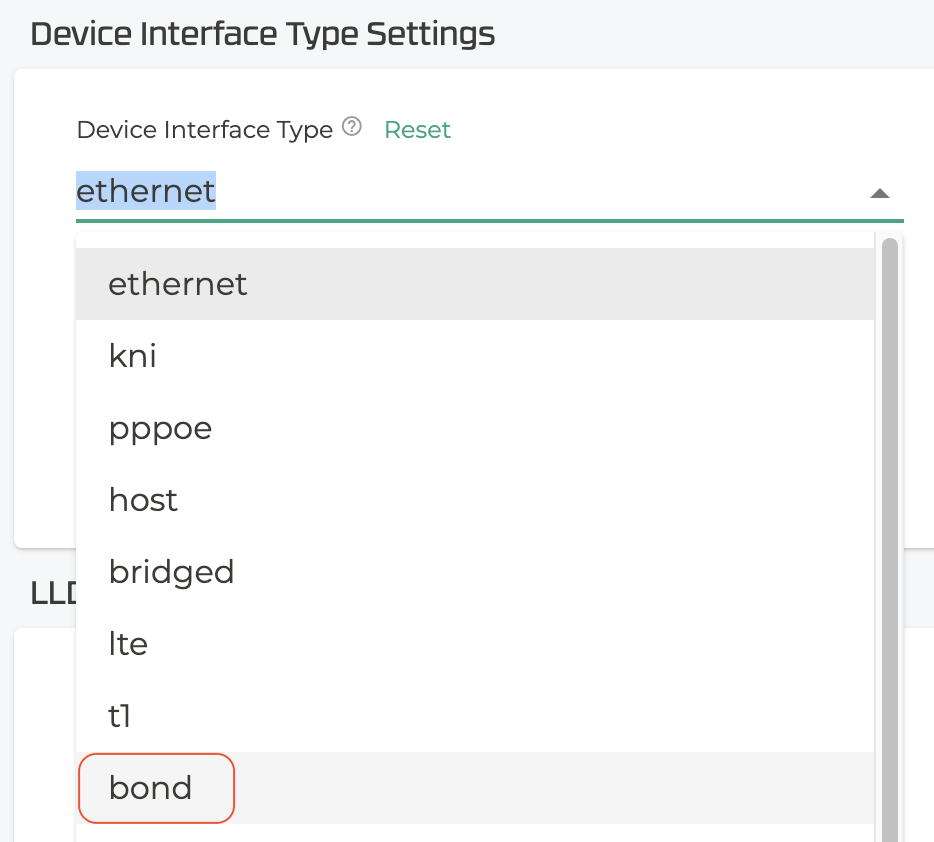

This example will configure an interface to be used to establish connectivity between HA peers. To configure a non-forwarding interface, set the forwarding flag to false. This example uses a device-interface set to type ethernet.

node T116_DUT1
name T116_DUT1
device-interface control
name control
type ethernet
pci-address 0000:00:04.0
forwarding false

The next step is to add a network-interface. Start by creating a fabric interface to reach the HA peer node. fabric was chosen in this situation because the HA nodes are directly connected:

node T127_DUT1
name T127_DUT1
device-interface control
name control
type ethernet
pci-address 0000:00:04.0
forwarding false
network-interface peer-fabric-intf
name peer-fabric-intf
type fabric
address 172.16.1.1
ip-address 172.16.1.1
prefix-length 24
gateway 172.16.1.201
exit
exit
exit
exit

This interface is needed to establish connectivity to the HA peer node. A similar fabric interface is required on each node of the HA pair.

node T127_DUT2
name T127_DUT2
device-interface control
name control
type ethernet
pci-address 0000:00:04.0
forwarding false
network-interface peer-fabric-intf
name peer-fabric-intf
type fabric
address 172.16.1.2
ip-address 172.16.1.2
prefix-length 24
gateway 172.16.1.201
exit
exit
exit
exit

At this point, it may be a good time to commit the configuration.

The interfaces created within the 128T configuration will manage corresponding interfaces in Linux. 128T will dynamically update all SSH tunnels which are used to send control traffic to the peer node.

eth1: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet6 fe80::f816:3eff:fe4c:5ebe prefixlen 64 scopeid 0x20<link>
ether fa:16:3e:4c:5e:be txqueuelen 1000 (Ethernet)
RX packets 5581689 bytes 1057148542 (1008.1 MiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 5818989 bytes 1002306918 (955.8 MiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
team-eth1: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 172.16.1.1 netmask 255.255.255.0 broadcast 172.16.1.255
inet6 fe80::f816:3eff:fe4c:5ebe prefixlen 64 scopeid 0x20<link>
ether fa:16:3e:4c:5e:be txqueuelen 1000 (Ethernet)
RX packets 5544219 bytes 977056448 (931.7 MiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 5777931 bytes 979222766 (933.8 MiB)
TX errors 0 dropped 2 overruns 0 carrier 0 collisions 0
note

The first time a non-forwarding interface is configured and 128T "takes over" the Linux interfaces, a backup of all the previous ifcfg scripts will be created at /var/run/128technology/network-script-backups.tar.gz.

Notice the interfaces are configured as network team because the type was set to fabric. If instead the type was set to shared then interface eth1 would have been configured directly with the static IP address.

info

Upon committing configuration changing the control IP addresses, it can take up to two minutes for the node to reconnect internally or reconnect to its HA peer node. This delay happens because 128T is waiting for the TCP state machine to close existing connections. Don't panic. Just sit tight and wait for everything to reconnect.

While this example showcases peering with a HA node on a conductor, the configuration and operations are identical for a router.

Run show system connectivity to ensure that both nodes are connected.

admin@T127_DUT1.Conductor# show system connectivity
Wed 2019-02-13 16:09:06 UTC
===================== ===================== ==============
Local Node Remote Node State
===================== ===================== ==============
T127_DUT1.Conductor T127_DUT2.Conductor connected
Completed in 0.11 seconds

Run show system connectivity internal to confirm that the internal processes are communicating with each other.

admin@T127_DUT1.Conductor# show system connectivity internal
Wed 2019-02-13 16:09:30 UTC
===================== ===================== ================= ================= ===========
Local Node Remote Node Service Address Message
===================== ===================== ================= ================= ===========
T127_DUT1.Conductor T127_DUT1.Conductor Zookeeper 127.0.0.1:4370 Connected
T127_DUT1.Conductor T127_DUT1.Conductor ssc 127.0.0.2:12222 Connected
T127_DUT1.Conductor T127_DUT1.Conductor step-repository 127.0.0.2:15555 Connected
T127_DUT1.Conductor T127_DUT2.Conductor Internal SSH 127.0.0.1:932 Connected
T127_DUT1.Conductor T127_DUT2.Conductor LeaderElect 127.0.0.1:2225 Connected
T127_DUT1.Conductor T127_DUT2.Conductor Quorum 127.0.0.1:2224 Connected
T127_DUT1.Conductor T127_DUT2.Conductor ZED 127.0.0.1:4392 Connected
T127_DUT1.Conductor T127_DUT2.Conductor Zookeeper 127.0.0.1:4371 Connected
T127_DUT1.Conductor T127_DUT2.Conductor influx-rpc 127.0.0.3:8088 Connected
T127_DUT1.Conductor T127_DUT2.Conductor ssc 127.0.0.3:12222 Connected
T127_DUT1.Conductor T127_DUT2.Conductor step-repository 127.0.0.3:15555 Connected
T127_DUT1.Conductor T127_DUT2.Conductor tank 127.0.0.3:11011 Connected

Now that connectivity has been fully established between HA peer nodes, it is useful to configure some external management interfaces. This example will create an external Ethernet interface using DHCPv4.

device-interface mgmt
name mgmt
type ethernet
pci-address 0000:00:03.0
forwarding false
network-interface ext-mgmt-intf
name ext-mgmt-intf
type external
default-route true
management-vector
name ext-mgmt-vector
priority 100
exit
dhcp v4
exit
exit

Notice that some additional fields were configured. The default-route is set to true. This instructs Linux to set this external interface as the default route for all traffic. Secondly, a management-vector was configured. This is required when setting the default-route to true. The user is allowed to define multiple interfaces as the default-route, so the management-vector is used to define the priority of all interfaces which are set as the default route.

note

If you configure the interface that is currently being used to connect to 128T as an external interface, you will notice your connection hang for a few moments while 128T takes over the interface after the config is committed. Once the commit is complete you will notice the interface's ifcfg script has been updated:

[root@t127-dut1 ~]# cat /etc/sysconfig/network-scripts/ifcfg-eth0
BOOTPROTO=dhcp
DEFROUTE=yes
DEVICE=eth0
METRIC=100
MTU=1500
NM_CONTROLLED=no
ONBOOT=yes
TYPE=Ethernet
USERCTL=no

The goal of this functionality is to eliminate the need for administrators to have to drop to the Linux shell to manually configure interfaces. A configuration field name ifcfg-option was added to the network-interface to allow super users to add any config field directly to an ifcfg script that 128T currently does not support. 128T does validate that the user is not trying to configure any options that 128T already configures to avoid creating conflicts with 128T settings. An example is firewalld zones. Perhaps this external interface needs to be configured as a trusted interface.

network-interface ext-mgmt-intf
name ext-mgmt-intf
global-id 5
type external
default-route true
management-vector
name ext-mgmt-vector
priority 100
exit
dhcp v4
ifcfg-option ZONE
name ZONE
value trusted
exit
exit

Upon committing this configuration you will see the ifcfg script get updated with the new value.

[root@t127-dut1 ~]# cat /etc/sysconfig/network-scripts/ifcfg-eth0
BOOTPROTO=dhcp
DEFROUTE=yes
DEVICE=eth0
METRIC=100
MTU=1500
NM_CONTROLLED=no
ONBOOT=yes
TYPE=Ethernet
USERCTL=no
ZONE=trusted
